Default Horus Plugin

The default Horus plugin implements common basic functionality such as getting data from a remote server, visualizing molecules in Mol*, or giving input options to other blocks.

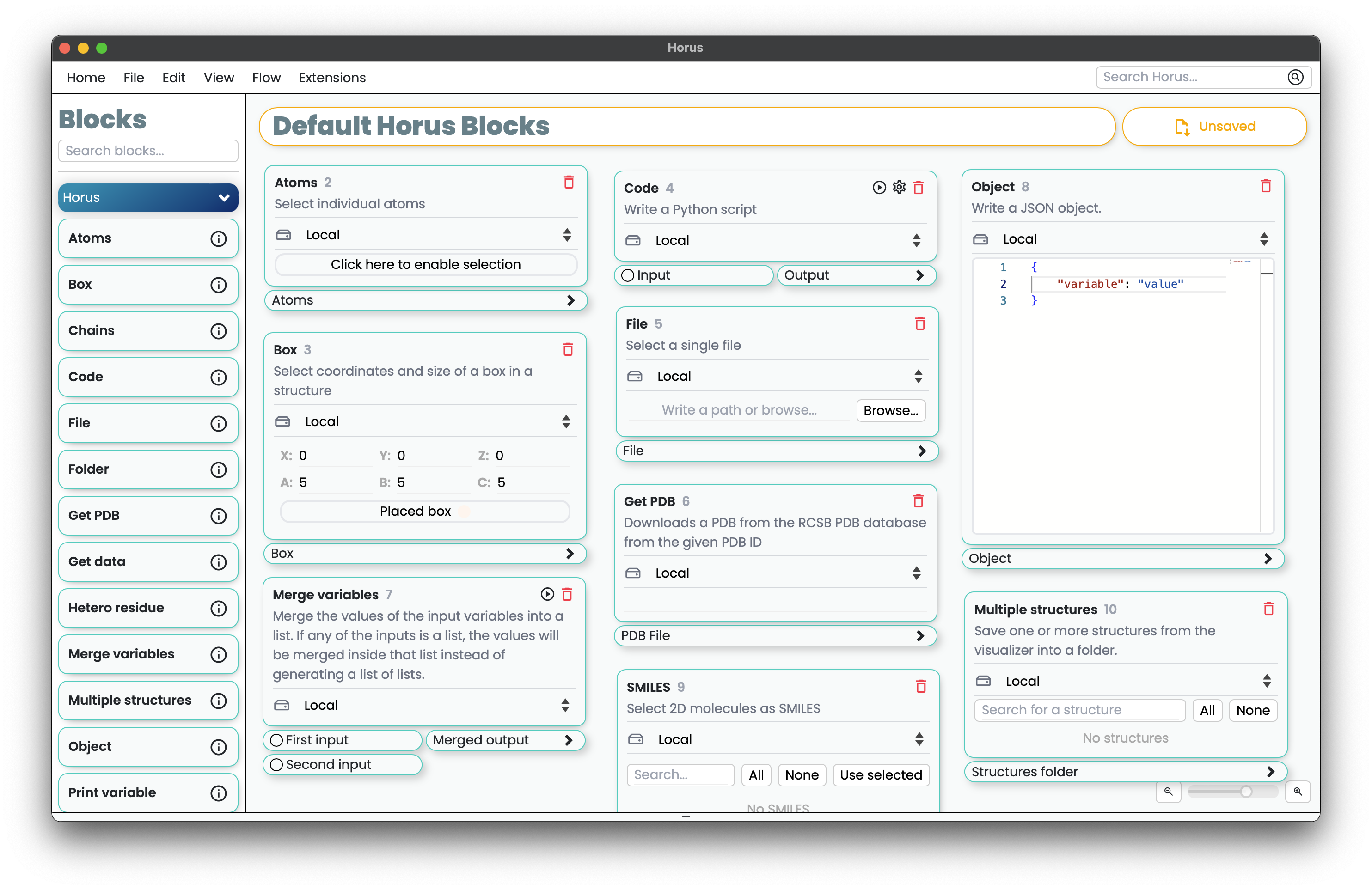

Default blocks

Horus implements some useful blocks by default. These can be found under the “Horus” section of the Block list.

Default extensions

Horus comes with a default Extension used to load HTML files, images and more. This can be useful for loading simple reports of the calculations made by a Block. For example, one could load pandas dataframes, matplotlib plots, or even ipywidgets.

You can use the extension by calling the ExtensionsAPI from inside a Block. You can use its methods to load information into Horus. For more information about Extensions, please refer to the Extensions section.

All default extension functions provides optional parameters such as “title” and “store” for storing the result into the block.

from HorusAPI import Extensions, PluginBlock

def myBlockAction(block: PluginBlock):
    from ipywidgets import IntSlider
    from ipywidgets.embed import embed_minimal_html

    slider = IntSlider(value=40)
    embed_minimal_html('export.html', views=[slider], title='Widgets export')

    # Load the html file as a string
    with open("export.html", "r") as f:
        html = f.read()

    Extensions().loadHTML(html, "My results")

loadHTML

This extension loads an HTML file into the Horus extensions view. The file path should be provided, and the content is displayed as a rendered HTML document.

from HorusAPI import Extensions
ext = Extensions()

with open("path/to/file.html", "r") as f:
    ext.loadHTML(f.read(), title="Awsome page", store=False)

loadImage

This extension loads and displays a single image from a specified image file path. Supported image formats include common types such as .jpg, .png, etc.

ext.loadImage("path/to/image.png", title="My dog.png", store=True)

loadText

Use this extension to load and display formatted text. You can pass the text directly or read it from a file, making it useful for displaying log files, reports, or any text-based content.

with open("logfile.log", "r") as f:
    ext.loadText(f.read())

loadCSV

This extension loads CSV data into an interactive table, allowing users to explore and manipulate the data. It requires a valid CSV file path.

ext.loadCSV("path/to/data.csv", store=True)

loadPlot

This extension creates an interactive plot using CSV data. The CSV file should contain columns representing the data series to be plotted.

ext.loadPlot("path/to/plot_data.csv")

loadPDF

This extension loads and displays a PDF file directly in the extensions view. It can handle multi-page PDFs and supports standard PDF navigation features.

ext.loadPDF("path/to/document.pdf", "Report")
